Equipment features:
| 1.AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training |
| 2.Dataization: Independent database, save multiple samples, analyze non-good products, and retain history |
| 3.Multi-orientation: 360 ° comprehensive inside and outside the samples |
| 4.High precision: detection accuracy can be high |
| 5.Modularization, can flexibly increase or decrease the detection function according to customer actual needs |
| 6.Easy to operate: It is easy to operate and easy to maintain |
| 7.Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment |
In today's industrial manufacturing, product quality is very important, and more and more products are beginning to require full inspection, such as screws and nuts, auto parts, magnetic materials, and precision hardware. These products are produced in large quantities. If they rely on manual inspection and full inspection of these products, a large amount of labor is required, which is costly but inefficient. At this time, it is necessary to use an optical screening machine to detect these mass-produced products, which is fast and accurate, and at the same time greatly reduces labor costs.
During the production process of the lampshade, various defects will appear, such as: lack of material, black shadow on the surface, severe yin and yang surface, exposed aluminum on the surface, falling off aluminum cup, shrinkage marks, pits, holes, leak marks, etc. KEYE LED lampshade appearance inspection machine automatically detects LED lampshades, sorts and counts them, and uses visual appearance inspection system to realize multi-station and no dead-angle inspection. Solve the problem of manual product quality inspection and improve customer satisfaction.

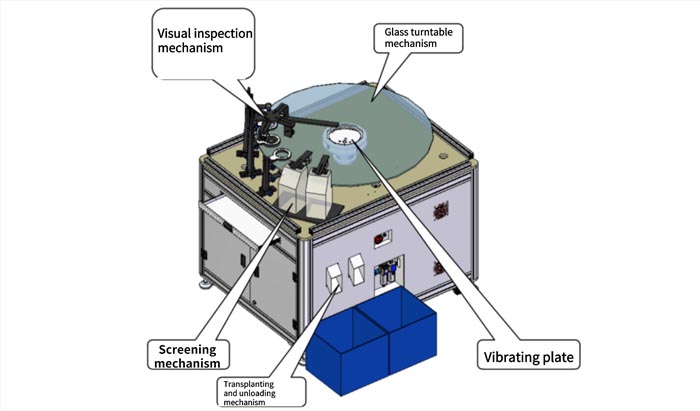

Mechanical structure:
The mechanical structure of this equipment includes a vibrating plate, a direct-vibration feeding mechanism, a dislocation mechanism, a transplanting feeding mechanism, a visual inspection mechanism, a glass turntable mechanism, a transplanting and unloading mechanism, and a defective rejection mechanism.
Machine features:
1. Utilizing the high light transmittance of glass, the object to be inspected can be placed on the glass plate steadily, and both sides can be inspected.
2. Detection range: all sides of the lampshade, no dead angle detection
3. It can be quickly applied to products of different sizes.
4. Inspection speed: it depends on the product to be inspected, up to 500PCS/min.
5. Machine can be customized according to customer's product inspection requirements
Real-time image from software:
**Our company have served many well-known enterprises such as Coca-Cola, P&G,Unilever,ALPLA,C'estbon, Nongfu Spring, etc., and has won praise from many users.
Product Tags:
|
|
GMP Workshop 3d Aoi Automated Optical Inspection Machine for Lamp Shade Images
|
